AUNOV PRODUCT RANGE
Precision Deep Drawn & Stamped Products
Six product families, one factory — every part drawn, machined and inspected under our own roof.
Aunov Tech builds custom metal parts to print across six product families — precision deep drawn parts, drawn tubes and sleeves, sensor housings, custom metal stampings, CNC-machined components and automotive motor parts. We draw stainless steel, aluminum and copper alloys on mechanical and hydraulic press lines, finish them in our own CNC cells, and inspect every batch before packing. Send us your drawing and annual quantity; our engineers will come back with material advice, tooling cost and a per-piece price within 24 hours.
Built In-House, From Coil to Carton
Materials, Tolerances and Lead Times
Every part in the catalogue is quoted from your drawing, but three questions decide most programmes: what the part is made of, which dimensions actually matter, and when you need it.
- Materials. Cold-rolled steel SPCC and DC01–DC06, stainless steel SUS304 and SUS316, aluminium 1050 to 6061, and brass and copper for conductive parts. We advise the grade that draws most easily for the geometry rather than the one with the highest number.
- Tolerances. Formed diameters and lengths are held consistently once the draw schedule is proven; features tighter than forming allows are machined afterwards. Tolerance only the surfaces that functionally matter — marking everything critical adds operations without adding function.
- Thickness range. From 0.15 mm foil to 3.0 mm sheet, drawn to depths up to about 150 mm on press lines from 5 to 500 tonnes.
- Lead time. New tooling typically samples in three to four weeks from purchase order; repeat orders run against the existing tool, so the schedule is set by the press and the finishing route rather than by tooling.
If a requirement sits outside deep drawing, we quote the process that fits instead — stamping, CNC machining or a hybrid route. The engineering behind those decisions is explained in our deep drawing process and material selection pages.
Send Us Your Drawing
STEP, DWG or PDF — our engineers reply with tooling cost and a per-piece price within 24 hours.
Complete product catalogue
Every part below is produced in our own plant – drawn, stamped, finished and inspected in house. Open any part for its drawing route, materials, tolerances and tolerance discipline.
Deep drawn parts (58)
Seamless cans, shells, covers and caps drawn deeper than wide.
- Stainless steel deep drawn pump tube
- Stamped Electric Motor Cover Manufacturer
- Canned Motor Cover – Deep Drawn Enclosure
- Cold Drawn Motor Cover – Precision Housing
- Metal Motor Covers – Custom Stamping
- Sheet metal stamping electric motor cover
- Deep drawn housing
- Metal stamping DC motor cover
- Stamping DC motor cover
- Deep drawn electric motor end cover
- Deep drawing electric motor end cover
- Metal forming electric motor end shields
- Sheet metal forming electric motor end shields
- Electric Warm Wind Motor Can
- Electric Warm Wind Motor Casing
- Deep drawn can
- Warm wind motor shell
- Warm wind electric motor body
- Warm wind motor enclosure
- Oil pump electric motor enclosure
- Pump magnetic cylinder
- Deep Drawn Cylinder Can
- Cooling pump electric motor casing
- Car starter electric motor accessories
- Car starter electric motor cover
- Auto starter electric motor shield housing
- Deep drawn shell
- Deep drawn enclosure
- Deep drawn shield
- Deep drawn cup
- Deep drawn cap
- Deep drawn cover
- Deep drawn components
- Precision sheet metal deep draw stainless steel battery can
- Precision sheet metal deep drawn power window switch housing
- Precision sheet metal deep draw electromagnetic switch housing
- Sheet Metal Forming Electromagnetic Switch Housing
- Stamped Round-Base Mounting Bracket
- Deep Drawn Fuel Pump Cover with Fittings
- Precision Stamped and Bent Bracket
- Stamped End Cap with Side Hole
- Deep Drawn Cans, Caps and Sleeves
- Small Drawn Brass Sleeves
- Deep Drawn Cylindrical Shell
- Deep drawn punching parts
- Multi-Hole Stamped Mounting Bracket
- Stamped Motor Mount Bracket
- Galvanized Stamped Clip Bracket
- Aluminum Mascara Tube
- Deep drawn brass tube
- Deep Drawn Aluminum Cap – Custom Sizes
- Deep drawn stainless steel tube
- Deep drawn box
- Deep Drawn Square Cover – Custom Tooling
- Deep drawn stampings
- Deep drawn frame
- Deep drawn fasteners
- Deep Drawn Connector
Automotive motor components (53)
Motor housings, cans, end caps and brackets for DC motors and actuators.
- Sheet metal stamping wiper motor housing
- Metal stamping wiper motor housing
- Sheet metal forming wiper motor housing
- Deep Drawn Wiper Motor Housing
- Deep Draw Wiper Motor Housing
- Deep drawing wiper motor housing
- Power window regulator motor housing
- Power window regulator motor can
- Power window regulator motor case
- Power window regulator motor casing
- Power Window Regulator Motor Aluminum Can
- Power window regulator motor shell
- Power window regulator motor enclosure
- Power window regulator motor yoke
- Power window regulator motor body
- Auto starter motor housing
- Auto starter motor can
- Auto Starter Motor Can 2
- Auto starter motor enclosure
- Auto starter motor casing
- Auto starter motor body
- Auto starter motor frame
- Auto starter motor cabinet
- Electric Warm Wind Motor Housing
- Fuel pump electric motor housing
- Fuel pump electric motor casing
- Oil pump electric motor housing
- Cooling pump electric motor housing
- Fuel pump electric motor components
- Precision sheet metal deep drawing air conditioner electric dc motor housing
- Sheet metal deep drawing stepping motor housing
- Sheet metal deep drawing stepper motor housing
- Wiper motor housing
- Wiper motor can
- Wiper motor case
- Wiper motor casing
- Wiper Motor Cap with Shaft Boss
- Wiper motor shell
- Wiper motor enclosure
- Wiper motor yoke
- Wiper motor body
- Wiper motor frame
- Wiper motor cabinet
- Wiper Motor Housing 2
- Wiper motor cup
- Wiper motor cap
- Wiper motor cover
- Wiper motor canister
- Wiper motor accessories
- Wiper motor spare parts
- Wiper motor components
- Wiper Motor Assembly
- Wiper motor stamping parts

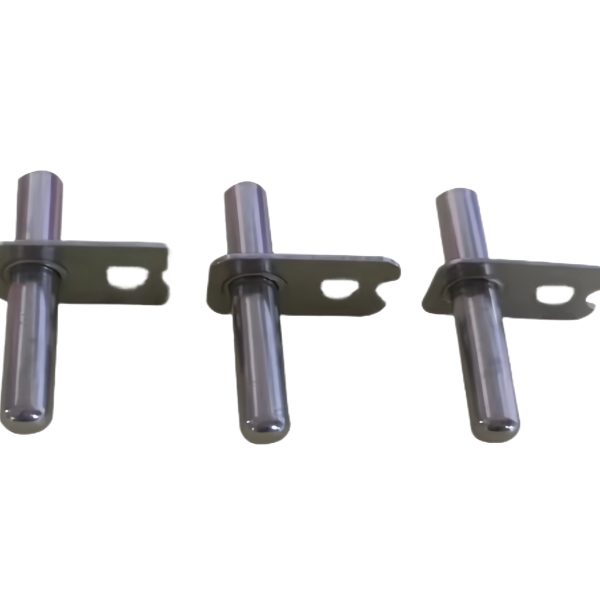

Sensor housings (17)
Sensor shells, frames, sleeves and housings in stainless steel and brass.
- Oxygen sensor housing
- Oxygen sensor can
- Oxygen sensor case
- Oxygen sensor shell
- Oxygen sensor enclosure
- Oxygen sensor body
- Oxygen sensor frame
- Oxygen sensor cup
- Oxygen sensor sleeves
- Oxygen sensor bushings
- Deep drawn sensor tubes
- Deep drawn sensor housing
- deep drawing sensor housings
- Hex Head Sensor Housing – Deep Drawn SS
- Weldable Stainless Steel Sensor Housing
- 6x50mm Temperature Sensor Housing – SS Tube
- Stainless steel Sensor housing

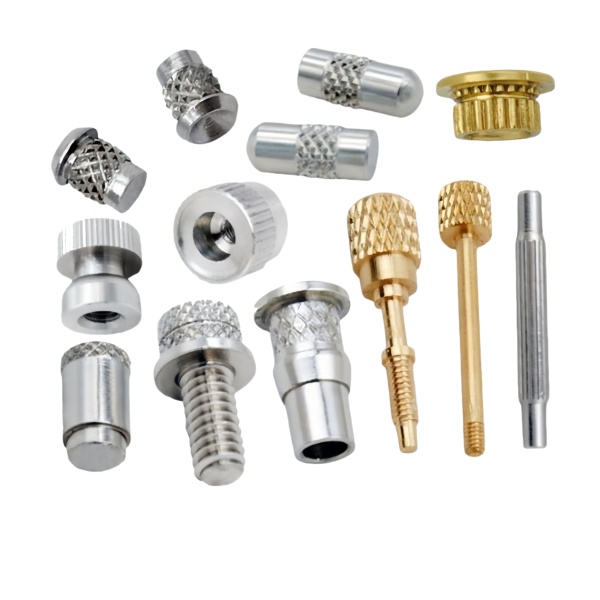

CNC machining parts (6)
Formed blanks finished by CNC – threads, seal faces and precision bores.
- Machining parts
- CNC Turning Parts
- CNC Milling Service
- Stainless steel Machining parts
- Custom CNC Machining Parts
- CNC Machining Service
Deep drawn tubes & sleeves (4)
Thin-wall drawn tubes and sleeves for valves and fluid control.
Explore Our Product Categories
What Are Deep Drawn Metal Products?
Deep drawn parts are seamless metal components formed by drawing a flat sheet-metal blank into a die rather than by cutting, folding or joining, so the finished shell has no weld line and a wall that stays continuous from base to rim. Tensile forming of sheet is classified under DIN 8584. Alongside drawn parts we build drawn tubes and sleeves, sensor housings, custom metal stampings, CNC-machined components and automotive motor parts, which lets one drawing travel from coil to finished component without leaving our factory.
What is the difference between deep drawn parts and stamped parts?
Deep drawing pulls a flat blank into a die so the metal flows into a seamless shell whose depth is greater than its diameter, while conventional stamping mostly cuts, bends or pierces the sheet without forming that depth. Drawing gives you a leak-tight one-piece body with no seam to fail, and stamping is usually faster and cheaper for flat brackets, shields and clips. We run both, on press lines from 5 to 500 tonnes for drawing and progressive, transfer and single-stage dies for stampings, so we will recommend the route that suits your geometry and annual volume.
Can one part combine drawing, machining and stamping?
Yes. A drawn can often needs a pierced hole, a machined thread, a trimmed flange or a welded boss, and keeping those steps under one roof removes the tolerance stack that appears when separate suppliers each work to their own datum. Most parts continue through CNC trimming, welding and inspection in-house, so one supplier controls the whole chain from material certificate to export carton.
Which metal should I choose for a corrosive environment?
Stainless steel is the usual answer where the part sees moisture, road salt or cleaning chemicals, and it also takes passivation and electropolishing well. Common stainless steel sheet grades are specified in ASTM A240/A240M. Where weight matters more, aluminum is lighter and forms predictably in deep draws; where electrical or thermal conductivity matters, copper and brass are worth considering. We draw stainless steel, aluminum and copper alloys, and we will suggest a grade once we know the operating environment.
Do you supply assemblies, or individual components only?
Both. We ship individual drawn components when you prefer to assemble in your own plant, and we can deliver completed parts where a drawn shell needs trimming, piercing, welding, cleaning and inspection before packing. Tell us which scope you want quoted and we price to that drawing.
What do you need from me to quote a part?
A drawing with the critical dimensions marked, your expected annual quantity, and the material you have in mind. Our engineers come back with material advice, estimated tooling cost and a per-piece price within 24 hours. Minimum order quantities start at 1,000 pieces.
