A frame is a structure, and structures fail at their joints
A deep drawn frame is the least obviously cylindrical part in this whole family, and that is exactly what makes it interesting. A frame carries loads between several points, resists twisting, and holds other things at positions relative to one another. Almost none of that is achieved by the frame’s material – it is achieved by the closed or semi-closed sections, by how the load paths join, and by how the frame is attached to whatever it is carrying. A frame that is dimensionally perfect and properly attached at two of its three mounts is still a bad frame.
This page is about the structural decisions in a drawn frame and what they mean for the drawing. We deep draw from coil or blank with in-process annealing so walls thin evenly, logging every stage against your part number, on 5-250 T mechanical and 250-500 T hydraulic presses with annealing ovens on site, secondary operations on CNC turning centres, and CMM inspection. Carbon steel in SPCC and DC01 grades, 304 and 316 stainless steel, aluminium, brass and copper are all available, with the grade matched to the duty. Tolerance runs +/-0.05 mm to +/-0.1 mm across the part with wall thickness held to the print.
Section shape decides stiffness far more than thickness
For a given mass, a frame’s stiffness is set by how the material is arranged in space. The hierarchy is worth stating because it is counter-intuitive to people who think of stiffness as a property of thickness:
| Closed box section | The stiffest section by a very wide margin. All the material is in the walls, and the section resists both bending and torsion. A drawn frame that forms a closed section is dramatically stiffer than an open one of the same mass – this is why chassis frames and enclosures are boxes rather than channels. |
|---|---|
| Channel or hat section | Good in one bending direction and poor in the other, and poor in torsion. Useful where the load is known to be one-directional and where one face has to be flat for mounting. |
| Angle or L section | Stiff along the corner, poor in torsion, and easy to form in a draw. Common in frames where stiffness is a secondary requirement and simplicity in manufacture is primary. |
| Flattened or rolled-out flange | The weakest of the group. A flange that has been formed outward and flattened has very little section depth, and it relies on the flat panel’s own bending stiffness. |
Where a frame has to carry real load, the design question is which sections can be closed, because closing a section is worth far more than any thickness increase available within a sensible material budget.
Joints and load paths
A frame’s strength is not its material’s strength; it is its joints’ strength. Four connection types appear on drawn frames, and they behave very differently:
- Welded. The strongest and the stiffest, because a weld is effectively a continuous section. It also introduces heat distortion, which on a thin drawn frame can bow a flat mounting face – and a bowed mounting face is a frame that will not sit flat on its equipment.
- Riveted. Historic and still used on frames that must be disassembled or where welding is not permitted. A riveted joint is a series of point connections, so it relies on the joined flanges’ stiffness to distribute load and it can loosen in vibration.
- Bolted through clearance holes. The standard for a frame that has to be attached to its surroundings. The joint’s strength depends on the friction at the interface, which means preload matters and the bearing area matters.
- Spot welds or clinches. Used where a permanent joint is wanted without a visible weld. Fast and sound on sheet, with the same distortion consideration as welding.
And the structural point that catches people: a frame that carries load between three or more points needs those points to be genuinely fixed, not one fixed point and two that merely rest. A frame pinned at one mount and bolted at another is a linkage, and it will move under load in a way that a drawing never shows.
Drawn construction: what a frame looks like before it is a frame
A drawn frame is usually made as a shell – a shallow or deep cup with walls – and the frame’s geometry comes from forming that shell’s walls and adding features. Three consequences for the drawing:
- A drawn wall thins, and it thins unevenly. The wall at the punch nose radius is the thinnest point in the part, and a frame’s corners are where the flow changes. Where the corner is a structural feature, the minimum wall there – not the nominal – is the design value.
- Wall thickness is called out to print on this part rather than to a general tolerance, which is the right approach on a structural shell. A wall that varies by 0.1 mm changes a section’s stiffness measurably, so the drawing should state the acceptable band and where it applies.
- Ribs and beads on the shell. Forming a bead in the wall is a cheap way to add local stiffness, and it also stiffens the panel against dishing. On a frame that will be handled or shipped, a bead pattern that follows the load path is more effective than extra thickness.
Flatness: the mounting face problem
A frame’s flat mounting face is a functional requirement, and it is the feature most likely to be out of specification. Three causes:
- Residual stress. Forming the walls leaves the frame’s panel in a state of residual stress, which relaxes over time and over handling. A frame that measures flat at the first article can bow after a month in a warehouse.
- Welding distortion. If any of the frame is welded, the heat pulls the panel out of flat and the drawing has to accommodate it or the process has to correct it.
- Handling. A large frame is easy to bend in transit, and a frame that arrives out of flat will often be mounted anyway because the flatness was not a stated requirement.
The controls: state flatness against a named surface, and specify the measurement condition; allow a realistic band rather than an aspirational one; and where flatness is critical, consider a coinage or a stiffening bead that makes the panel itself resistant to dishing. A frame’s flatness tolerance and its handling requirements are linked – a part that must arrive flat needs a packaging specification, not just a tolerance.
Materials, and what the frame’s environment decides
Carbon steel in SPCC and DC01 grades, 304 and 316 stainless steel, aluminium, brass and copper are all held, with the grade matched to the duty of the frame.
- Carbon steel. The standard structural choice. It is the stiffest common option per unit mass in absolute terms for small sections, it is economical, and it needs plating or coating for any moisture exposure.
- Aluminium. Where the frame must be light – an enclosure carried by hand, an aircraft or a portable device. Aluminium’s modulus is roughly a third of steel’s, so an aluminium frame needs section depths roughly 1.4 times larger to achieve the same stiffness. This is the calculation that most often surprises people moving a frame from steel to aluminium, and it is worth doing before the design is fixed rather than after a prototype bends.
- 304 and 316 stainless steel. Where the frame will be washed down, exposed, or in a corrosive atmosphere. Stainless Steel is heavier than aluminium and less stiff than steel, and it draws at higher tonnage with more springback.
- Brass and copper. Where conductivity, a specific corrosion behaviour or appearance drives the design, and on small frames rather than structural ones.
One cross-cutting material point for frames: thermal expansion across a large frame is significant. A frame that locates two components whose positions matter to each other will move those components relative to each other with temperature. If the relative position is a functional requirement, the frame’s material and its geometry both contribute to the answer and it needs calculating.
Surface finish, and where it must not go
Plating, coating or polishing to suit the drawing, with alternatives quoted alongside and samples approved in writing. On a frame, the finishing decisions that matter:
- The mounting face. A coated frame that is meant to sit flat on a machined surface will not sit flat, and a powder-coated frame’s face needs a machined pad. This is a design requirement – provide the pad, or mask the face, or both.
- The bores. A plated bore is smaller than the drawing. On a frame’s bolt holes this is normally fine; on a locating bore it is not, and it should be masked or specified as a pre-plate dimension.
- Threaded features. Mask them. A plated thread that seizes is a repair job.
- Inside surfaces. On a drawn frame the inside is often where water collects. If the frame will be outdoors, the interior finish or a drain feature is worth specifying – a coating that only covers the outside leaves an unprotected cavity.
A sample is reverse-measured into one drawing reused for every repeat
Send drawings, or send a sample to be measured – samples are reverse-measured into a controlled drawing, and the same drawing is used for every repeat order. Progressive and drawing dies are designed and built in house, so no tooling step is outsourced and ownership is confirmed on the quotation. The sample you approve becomes the gauge reference for production.
Eight things worth settling before the die is cut, in rough order of how often they change a frame:
- Which sections can be closed, because closing a section buys more stiffness than any thickness change.
- What the frame carries, and in which direction. Bending and torsion need different sections, and a frame designed for one often performs poorly in the other.
- How it attaches, and whether every load-carrying point is genuinely fixed.
- How flat the mounting face has to be, measured against a named surface, and what the packaging has to achieve to preserve it.
- Where the minimum wall is, given that the corners thin in the draw.
- Whether any welding is involved, and if so whether the flatness can survive the heat input.
- Which surfaces must stay uncoated, and whether the frame needs a machined pad for a flat contact.
- The material, chosen against the environment and against the stiffness calculation rather than against habit.
That stiffness calculation is worth doing properly. For a frame, the modulus and the section geometry decide the deflection, and both are known at the design stage – which makes a frame one of the parts where a few minutes of calculation can save a redesign, and where a drawing that states the required deflection rather than the required material is a much better drawing.
Not sure whether to draw, machine or weld this geometry? The guide to deep drawn covers compares the three routes and shows where each one wins; the full Precision Deep Drawn Parts range is linked from the overview page.

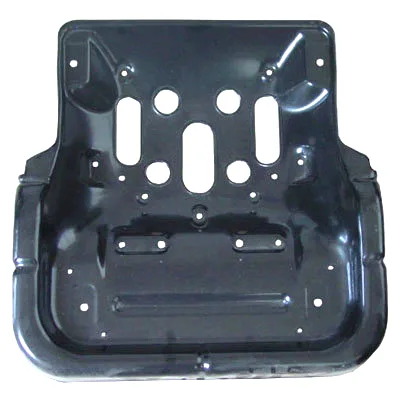

Specifications

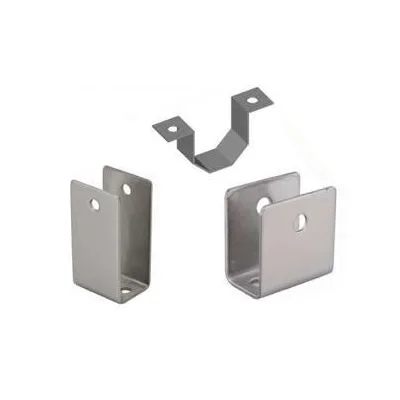

| Item | Deep drawn frame |
|---|---|
| Brand | AUNOV |
| Designing | Send drawings, or send a sample to be measured – samples are reverse-measured into a controlled drawing; the same drawing is used for every repeat order. |
| Tooling | Progressive and drawing dies are designed and built in house, so no tooling step is outsourced, and ownership is confirmed on the quotation. |
| Samples | The sample you approve becomes the gauge reference for production. |
| Materials | Carbon steel (SPCC / DC01), 304 / 316 stainless steel, aluminium, brass and copper – the grade is matched to the duty of this frame. |
| Surface finish | Plating, coating or polishing to suit the drawing; alternatives quoted with the quotation, samples approved in writing. |
| Processing | Deep drawing from coil or blank, with in-process annealing so walls thin evenly; every stage is logged against your part number. |
| Equipment | Press shop running 5-250 T mechanical and 250-500 T hydraulic presses, annealing ovens on site; secondary ops run on CNC turning centres, inspection on the CMM. |
| Tolerance | +/-0.05 mm to +/-0.1 mm across the part, wall thickness held to print; capability is checked on the first article before the run continues. |
| Delivery terms | Incoterms FOB as standard with DDP on request; sea and air options priced with the order. |
Frequently Asked Questions
Why is a frame deep drawn rather than built from sections?
Drawing the frame in one piece removes the joints where a fabricated frame flexes or corrodes, and the section shape is formed into the wall instead of bolted on. Stiffness comes far more from that section than from thickness, so the draw gives rigidity without the weight a fabricated alternative carries.
What flatness does a deep drawn frame mounting face hold?
The mounting face is held by the draw and the trim, typically to a few hundredths of a millimetre and verified on the CMM, because a frame seats on that face and any twist shows up as misalignment downstream. Flatness is named on the drawing rather than left to the trim allowance.
Which materials are used for a deep drawn frame?
Carbon steel for structure, aluminium where weight decides, and stainless steel for corrosion duty, with the grade matched to the frame’s environment. Each is drawn to its own limits, and the material choice is what sets the wall and the tooling route.
How are joints and load paths handled in a drawn frame?
A drawn frame carries load through continuous section rather than bolted joints, so the load path is the shape itself. Where a connection is still needed, it is located off the drawn datum so it stays related to the rest of the frame, and the critical faces are checked on the CMM.
