The bushing is the interface the mechanic touches

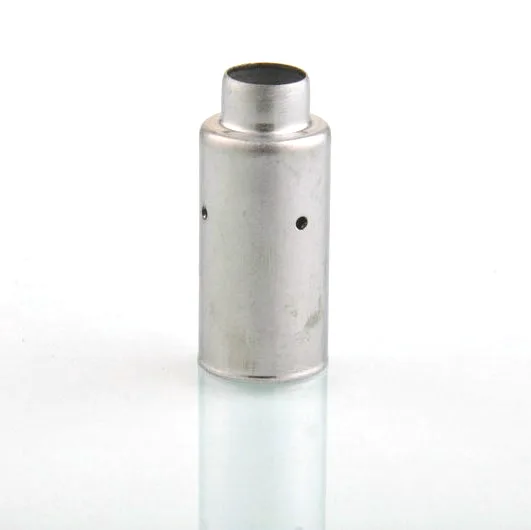

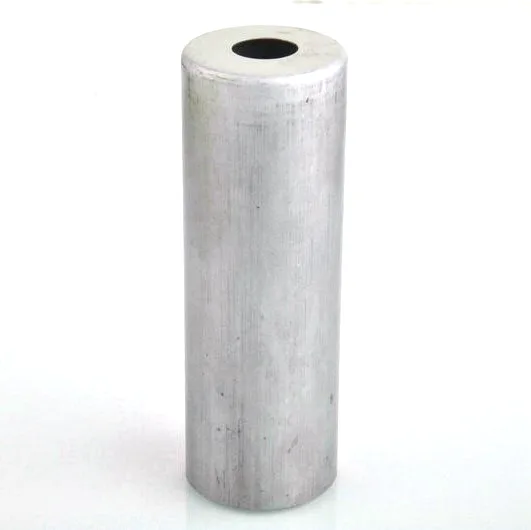

An oxygen sensor bushing is the threaded or press-fit metal element that carries the sensor into its boss – the part between the sensor body and the exhaust fitting. Engineers spend their design effort on the sensing element and the electronics; the bushing is where the vehicle actually meets the sensor, and it is the part that fails when installation torque, thread engagement, or a sealing cone is wrong.
We produce these as deep drawn or drawn-and-coined parts, in some cases combined with a machined thread. The forming envelope is modest in size but demanding in tolerance, because the thread pitch diameter, the sealing cone angle, and the wrench flat all reference the same axis.
Press-fit or threaded: choosing the right interface
The first decision is whether the bushing presses into the boss or threads into it, and each demands a different part design:
- Press-fit. The bushing’s OD is sized for a controlled interference in the boss – typically 0.05-0.15 mm on a 12-18 mm diameter. The retention is purely friction plus, often, a stake or a weld tack. Press-fit suits high-volume assembly where a robot presses the sensor home and a thread would slow the line.
- Threaded. The bushing carries an external thread (commonly M18×1.5, M12×1.25, or a pipe thread), a sealing cone (usually 60° or a spherical seat), and a hex or spline for the socket. Threaded is the standard for field-replaceable sensors and gives a defined torque-to-seal.
- Hybrid. A press-fit shell with a coin-formed internal thread, used where the boss is a casting with no room for a threaded engagement.
Where the customer needs a thread, we either coin-form it in the die (fast, lower precision, fine for a shallow thread) or roll/machine it as a secondary operation (precise pitch diameter, needed for a gas-tight engagement). The choice is a cost-versus-tolerance trade and we make it explicitly with the customer rather than defaulting to one.
Sealing: the cone, the crush washer, or the taper
A bushing that carries exhaust gas must seal, and the seal geometry is where most field leaks originate:
- Conical seat. The bushing’s cone seats against a matching cone in the boss. The seat must be concentric to the thread within 0.1 mm TIR and the cone surface must be smooth (Ra 1.6 µm or better); a rough cone deforms unevenly and leaks.
- Crush washer. A soft-metal washer takes the deformation instead of the cone; forgiving of cone concentricity, but requires the wrench torque to be controlled so the washer is crushed to the right degree.
- Tapered thread with sealant. Used on pipe-thread bosses; the sealant, not the metal, does the sealing, and the bushing thread must be full-depth to avoid a false torque reading.
We hold the cone angle to ±1° and the cone diameter to ±0.1 mm and provide a seat inspection fixture on request so the customer can verify the sealing land before final assembly.
Torque, thread engagement and pull-out
Two mechanical numbers govern field reliability:
- Installation torque. A typical oxygen sensor installs to 30-45 N·m, and the bushing thread must survive both the install and any re-install without stripping. For a coin-formed thread we hold the pitch diameter to a band that gives at least 6-8 full threads of engagement in the boss.
- Pull-out and rotate-out resistance. The bushing must not turn or pull free under vibration. For press-fit parts we specify a minimum retention force (typically several hundred newtons) verified by a push-out test; for threaded parts we specify a prevailing-torque or a locking feature.
A press-fit bushing that is a few hundredths loose can rotate under engine vibration and slowly unscrew the sensor – a failure that shows up as a running lean code months later and is very hard to diagnose. Setting the interference correctly at the die is the whole game.
Geometry and material envelope
| Diameter | 8-30 mm body; thread up to M20. |
|---|---|
| Length | 8-35 mm. |
| Wall | 0.8-2.5 mm (thicker where a thread is cut or rolled). |
| Material | 1.4301 / 1.4404 stainless steel for hot-end; free-cutting or low-carbon steel with plating where thread machinability matters. |
| Plating | Zinc-nickel or a high-temperature coating for threaded steel bushings; stainless steel is often left bare or passivated. |
Stainless Steel threads gall badly, so where a stainless steel bushing threads into a stainless steel boss we recommend a solid-film lubricant or a specified coating. This is a small detail that prevents a seized sensor on the service line.
Wrench features and installation ergonomics
The socket feature is not cosmetic. A hex formed too shallow rounds off under torque; a spline needs the socket to match exactly. We size the wrench flat across-flats to the standard socket for the thread size and hold the flat-to-thread concentricity so the socket engages without cocking – a cocked socket applies an off-axis torque that is a classic cause of a stripped or cross-threaded installation.
A machined thread and a coin-formed thread are not the same
Can you hold a thread to 6H? A rolled or machined thread, yes. A coin-formed thread is looser by nature – typically suitable where 6g/6h engagement is not gas-critical. We will not promise a tight thread from a coin operation.
What interference should I specify for a press fit? Send the boss material and its bore tolerance; we calculate the interference for your retention requirement rather than guessing. Too little loses retention, too much cracks a thin-wall boss.
Do you test pull-out? Yes, as a lot-acceptance test where retention is a specified characteristic, with the result recorded on the inspection report.
How do I stop a stainless steel sensor seizing in a stainless steel boss? Specify a coating or a solid-film lubricant on the thread – we apply either, and it materially reduces field seizure.
Specifying a bushing
Provide the mating boss drawing (bore tolerance or thread callout), the sealing method, the install torque, the wrench feature, the temperature, and the material pairing. Those inputs let us set the interference or the thread class correctly and pick a plating that prevents galling – and they let us quote a bushing that survives both the assembly line and ten years of service, which is the whole point of the part.
