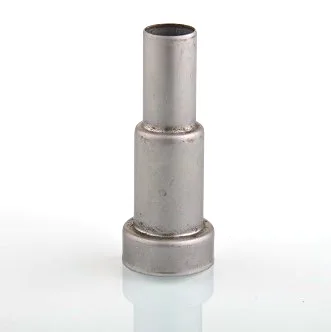

What an oxygen sensor frame actually has to do

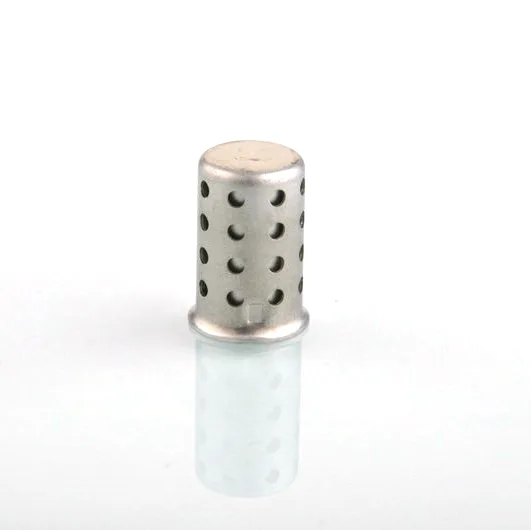

An oxygen sensor frame is the sheet-metal structure that holds the sensing element and positions the whole assembly in the exhaust stream. It is rarely the part an engineer thinks about first – the sensing element gets all the attention – yet a surprising number of field failures trace back to the frame rather than the ceramic. The frame sets the mounting plane, carries the weld seam to the exhaust pipe, and holds the ceramic element so its tip sits at the correct depth in the gas flow. Get those three things wrong and a perfectly good sensing element will read slow, drift, or crack.

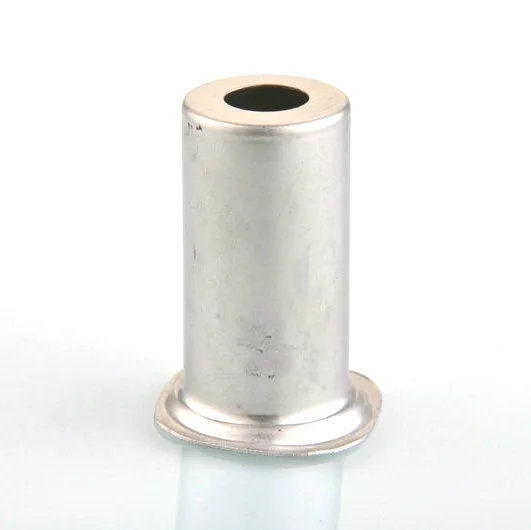

We draw these frames from 0.8-2.0 mm stainless steel strip, usually 1.4301 (304) or 1.4404 (316L) for the hot end. The geometry is a shallow shell – often a stepped cup with a flat flange – and the drawing operation is undemanding compared with a deep can. What makes the part difficult is everything that happens after forming: the flange must be flat within 0.1 mm across a 30-40 mm span, the element bore must be concentric to the mounting plane within 0.15 mm, and the weld lip must be sharp and burr-free enough to take a gas-tight seam.
Geometry and tolerance budget
A typical frame envelope on our 5-250 t press line:
- Blank: 30-70 mm diameter, 0.8-2.0 mm thick, coil-fed or blank-fed.
- Draw depth: 8-25 mm in one stroke; a second redraw only for frames with an internal step deeper than 15 mm.
- Flange flatness: 0.10 mm over the seal face – this is the acceptance limit, not a target.
- Bore-to-flange concentricity: 0.15 mm TIR.
- Weld lip edge: radius 0.2-0.4 mm, free of slivers, because a rolled-over edge traps gas and creates a leak path.
The tolerances stack fast. The flange flatness and the bore concentricity both originate from the same draw punch, so we hold flatness by controlling die clearance and by spring-back compensation in the die – not by a sizing operation afterwards. Where a frame carries a threaded boss or a pressed-in insert, we add a coin station that locally thins and cold-works the metal so the thread root does not strip under torque.
Why the weld lip matters more than the drawing
Most frames are welded to the exhaust boss or to the shell of the sensor body. If the weld lip is rough, thin, or slightly oval, the seam is prone to lack-of-fusion porosity, and a pinhole leak at 800 °C exhaust temperature becomes a growing crack. Two process choices control this:
- Edge condition from the trim die. We trim the weld lip in the same progressive die as the draw so the edge is a clean sheared face, then lightly coin it. Burr height stays under 0.05 mm.
- Material consistency. 1.4404 with a stabilised composition resists sensitisation at the weld; a low-carbon 1.4301 works for lower-temperature applications but we do not recommend it above 600 °C continuous.
Where the customer welds the frame themselves, we supply with a documented edge condition and, on request, a first-article dimensional report covering the lip diameter and edge radius so their weld program can be fixed with confidence.
Vibration and thermal cycling: the real durability test
A sensor frame lives in one of the harshest locations on a vehicle – bolted to an exhaust manifold or close-coupled pipe, cycled from ambient to 900 °C, and shaken by engine order vibration. The failure modes we design against are:
- Fatigue cracking at the flange fillet, where the flat flange meets the drawn wall. We keep the fillet radius at least 2t and avoid sharp transitions; a 0.8 mm wall with a 1.6 mm radius survives far more cycles than a 1.0 mm radius.
- Element seat wear. The ceramic element bears against the frame’s internal shoulder. A rough or work-hardened shoulder surface abrades the ceramic under vibration; we control surface finish on that seat and avoid over-coining.
- Thermal distortion of the flange. A frame with asymmetric material around the draw can bow when it heats, opening the seal. Symmetrical blank layout and balanced wall thinning reduce this.
We qualify with a thermal-shock rig (ambient to 850 °C, 1000 cycles) plus a sine-sweep vibration test; both run against the customer’s acceptance criteria rather than a generic spec.
Materials and when to use each
| Grade | 1.4301 (304) – general exhaust, up to ~600 °C continuous. |
|---|---|
| 1.4404 (316L) | Higher corrosion resistance, close-coupled positions, road-salt exposure. |
| 1.4509 / 1.4512 | Ferritic stabilised grades for very high temperature and thermal-fatigue resistance. |
| Thickness | 0.8-2.0 mm; thinner for light load, thicker for heavy manifold mounting. |
Ferritic grades draw with a narrower forming window – they are less ductile than austenitic 304 – so draw radii and blank-holder pressure need retuning. The reward is better thermal-fatigue life and lower cost, which is why we keep both routes tooled.
Quality documentation and traceability
Frames are safety-relevant in the sense that a sensor failure can trigger a MIL lamp and a warranty claim, so traceability is expected rather than optional. Standard supply includes:
- First article inspection report (dimensional + material cert) on the first lot.
- EN 10204 3.1 material certificates tying each production lot to a heat number.
- Cpk study on the two critical characteristics (flange flatness, bore concentricity) after process stabilisation.
- PSW / PPAP Level 3 documentation when the frame feeds an OEM sensor program.
Making the frame without a second machining step
Can the frame be made without a secondary machining step? In most cases yes – the drawing and coining operations hold the critical dimensions, and we only add machining where a thread or a precision bore below 0.05 mm is required.
How do you keep the flange flat after welding? We do not – welding is the customer’s step. What we do is supply a frame whose flatness is controlled and whose material is matched to the weld process, so the post-weld distortion is predictable and small. Where the customer needs a post-weld re-flat, we can supply a slightly crowned flange that flattens on cooling.
What is the minimum order for a new frame geometry? A new progressive die for this part family is justified from roughly 20,000-30,000 pieces per year; below that, a hard-tooled single-station draw with a separate trim is more economical.
Do you offer prototypes? Yes – soft-tooled or laser-cut blanks with a single-hit draw, typically 2-3 weeks, sufficient for fit and weld trials.
How to specify your frame
Send us the mounting interface drawing, the sensing element outer diameter, the weld method and position, and the expected temperature and vibration profile. With those four inputs we can propose a frame geometry, a material grade, and a tolerance scheme that holds the sealing plane and the element seat without over-specifying the part – over-specification is the most common reason a frame becomes expensive without becoming more reliable.
Sensor Housings is the range this part sits under; the overview page pulls together the tooling logic, finishing options and tolerance notes that apply across the family.
Specifications
| Item | Oxygen sensor frame |
|---|---|
| Brand | AUNOV |
| Designing | Your drawing sets the part – a manufacturability review comes back with the quotation; the agreed version governs every later batch. |
| Tooling | Dies, fixtures and gauges are made in our own toolroom, so the die charge appears as its own quotation line, and first-article timing is measured from the tooling start date. |
| Samples | Samples are issued for approval before the run, so the approved first article becomes the gauge reference, and mass production is gated on that approval. |
| Materials | Stock covers carbon steel (SPCC / DC01), 304 / 316 stainless steel, aluminium and brass; grade and temper are confirmed in writing before tooling. |
| Surface finish | Surface treatment matched to the duty: plating, coating or polishing; the finish is inspected with the dimensional report on the first article. |
| Processing | Blanking, drawing and piercing in sequence, then machining of sealing faces; every stage is logged against your part number. |
| Equipment | Hydraulic drawing presses and CNC lathes for sealing faces, backed by CNC turning centres and a climate-controlled inspection room. |
| Tolerance | +/-0.03 mm on stepped bores, concentricity per print; GD&T per drawing, PPAP-style reports on request. |
| Delivery terms | Freight, Incoterm and payment term are confirmed on the order: FOB, CIF or DDP, T/T or L/C. |
Frequently Asked Questions
Why is the weld lip more important than the rest of the geometry?
Because it is the feature everything else depends on and the one that is hardest to hold. The frame is a shallow shell and the draw itself is undemanding; what decides whether the part survives is whether that lip welds consistently, since a bad seal there puts exhaust gas where it should not be regardless of how good the rest is.
What actually wears these frames out?
Vibration and thermal cycling rather than steady load. The frame sits on a hot, shaking assembly, so it is the repetition that decides durability, and that is why the material and the edge condition get more attention than the static strength.
Which stainless steel grades are used, and does it matter?
The hot end typically calls for grades that hold up at temperature and against condensate, so the grade is selected for that environment rather than being a default. Sourcing to the drawing is normal here, and it is worth having the grade written down because it is not interchangeable in service.
Can the frame be made without a second machining step?
Often yes, which is the point of drawing it to form. Holding the features the assembly needs in the draw removes an operation and cost, although where a sealing face has to be genuinely flat it may still be worth bringing back by machining.
