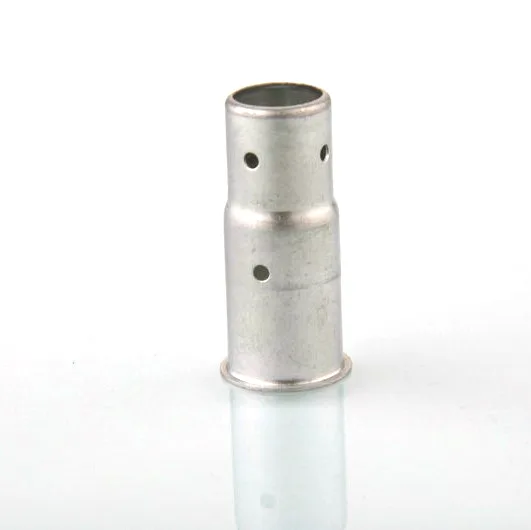

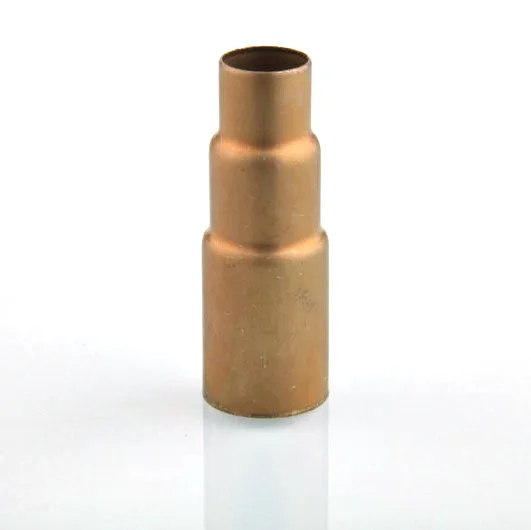

A sleeve is a tube, not a cup – and that changes everything

An oxygen sensor sleeve is the thin-wall cylindrical section that surrounds the sensing element or the heater, providing electrical isolation, mechanical guidance, or a sealing land. Unlike a cup it has no closed base, which sounds simpler but is not: the moment you remove the base, you lose the feature that normally stabilises the part, and concentricity, straightness, and roundness all become the problem.

We produce sleeves either by deep drawing a cup and trimming the base away, or by drawing a cylindrical shell in a two-stage process and cutting it to length. The first route gives excellent roundness because the base holds the wall during forming; the second is more material-efficient for long sleeves. Which route we recommend depends on the length-to-diameter ratio and on whether the sleeve has a flange.

Length-to-diameter ratio is the governing number

  • L/D below 1: trivially drawable; a cup-then-trim route gives the best roundness.
  • L/D 1-3: standard deep drawing, single or two-pass; the sleeve still behaves enough like a cup to stay round.
  • L/D above 3: the sleeve wants to buckle and lose straightness; we switch to a redraw over a long punch with a guided blank holder, or, for the longest sleeves, specify a drawn-then-welded or a bought-in tube cut to length.

This is where an inexperienced supplier gets into trouble: they accept a deep sleeve order and then discover the wall wobbles or the roundness drifts out of tolerance down the length. The honest conversation happens at quoting, not at the first rejected lot.

Concentricity and wall-thickness uniformity

For a sleeve that guides a ceramic element or seats an O-ring, the critical characteristic is not the outer diameter but the concentricity of the bore to the outer surface, which is really wall-thickness uniformity. A sleeve with a 0.1 mm wall variation will bind a ceramic element that fits perfectly in a sectioned sample. We hold:

  • Wall thickness variation: within ±8% around the circumference on a good die, ±5% on a fine die with careful clearance control.
  • Bore-to-OD concentricity: 0.05-0.10 mm TIR for sensor-grade sleeves.
  • Straightness: 0.1 mm per 20 mm of length.
  • Inner surface roughness: Ra 0.8 µm or better where a sliding or sealing interface is involved.

Wall uniformity is set at the die, not at an inspection station. We control it through die clearance (typically 8-12% of thickness per side for stainless steel) and through consistent lubricant film, then verify by sectioning.

End conditions: where sleeves fail in assembly

A sleeve is only as good as its two ends. In assembly, an end that is not square, is burred, or is work-hardened will tear an O-ring, jam in a bore, or refuse to seat against a shoulder. Our standard end treatments:

  1. Precision trim with a square cut – end squareness within 0.05 mm, burr under 0.03 mm, achieved in-die where volume allows.
  2. Deburr and edge radius – a 0.1-0.3 mm radius on the lead-in edge; for O-ring sealing lands we polish to Ra 0.4 µm so the elastomer is not nicked.
  3. Flare or flange – where the sleeve seats against a face, a small flared end distributes the load and stops the sleeve from creeping under vibration.

The most common assembly failure we see is an O-ring cut by a burred sleeve end, reported as a sensor leak. The fix is a 0.2 mm deburr radius, which costs almost nothing in-die if it is designed in from the start.

Materials and the isolation requirement

Sleeves that carry electrical isolation must be either metal with a defined dielectric standoff or a metal-ceramic assembly; a plain stainless steel sleeve is a conductor. Where the sleeve is the insulating element, the metal part is a housing that positions a ceramic insert, and the drawing tolerances then serve the ceramic, not the exhaust. Material is normally 1.4301 or 1.4404 for the high-temperature end, and 1.4301 or aluminium 3003/5754 for the cooler, electrical side.

Thickness0.3-1.0 mm typical for sleeves; thicker only when the sleeve carries structural load.
Diameter6-40 mm.
Length10-120 mm; beyond that we discuss a tube route.
ToleranceOD to -0.05/-0.15 mm, ID to +0.05/+0.15 mm is a normal sensor-grade band.

Heat, oxidation and the sleeve’s hot end

If the sleeve reaches exhaust temperature, two effects matter. First, oxidation scale forms on the outside and can flake, contaminating the sensing element; a stabilised stainless steel grade slows this. Second, differential thermal expansion between the sleeve and the ceramic element changes the fit – a room-temperature clearance can become an interference at 700 °C. We calculate the hot-state fit, not the cold-state fit, for sliding interfaces, and specify the coefficient of expansion on the drawing so the customer’s thermal model matches ours.

Bore tolerance follows wall uniformity on a sleeve

Can you hold the bore on a deep sleeve? Bore tolerance on a drawn sleeve is driven by wall uniformity; we can hold ±0.05 mm on diameters under 20 mm and modest lengths, and we will tell you when a reamed or honed bore is the honest answer.

Do you deburr both ends automatically? Yes – in-die for high volume, vibratory or a dedicated deburr station for lower volume. Burrs are specified out, not left to chance.

What if the sleeve cracks at the open end? That is almost always an over-tight die clearance or a missing redraw. We inspect the end condition on every lot precisely because a cracked end is a leak waiting to happen.

Can sleeves be supplied with a coating? Yes – passivation as standard, plus a conversion coating or a thin polymer coating where electrical insulation or lubricity is needed.

Specifying a sleeve

Send the OD, ID (or wall thickness), length, both end conditions, the interface type at each end (O-ring, press, weld, ceramic seat), and the temperature at the hot end. Those inputs let us pick cup-then-trim versus drawn shell, set the length-to-diameter route honestly, and quote a sleeve that will not surprise you in assembly.
