Bar-fed turning is an economics discipline before it is a machining technique
CNC turning parts look simple: a round bar goes in, a finished part comes out. That simplicity hides a set of decisions that determine whether the part is cheap or expensive, and almost none of them are about the shape. They are about how much of each bar becomes the part, how many seconds the spindle spends on each one, whether the tool survives the batch, and whether the operator has to touch the machine. Bar-fed turning is a production system, and treating it as a machining operation rather than a production system is how quotations go wrong.
We run bar-fed CNC turning centres with automatic bar feeders plus 3- and 4-axis machining centres, with in-house toolmaking keeping dies and fixtures maintained, and hold +/-0.01 mm on turned and milled features with dimensional reports accompanying the first article. Carbon steel, 304 and 316 stainless steel, aluminium and brass are all held in stock, with mill certificates and heat numbers accompanying the first article. This page is about the four variables that dominate the cost and the capability of a turned part.
Bar utilisation: the cost you do not see on the drawing
In bar-fed turning the material comes in lengths and the parts come off in sequence. Whatever is left at the end of the bar – the tail remnant – is waste, and it is not visible on a part drawing at all. Its size depends on three things:
- Part length versus bar length. A 60 mm part on a 1 m bar wastes the last few millimetres and is otherwise efficient. The same part machined from a 3 m bar has a longer remnant to accommodate, but bars are often supplied in a fixed length.
- Chucking length. The material the chuck grips is thrown away on every part. This is pure loss and it scales directly with part volume, so on a high-volume part it is one of the largest single cost items in the material.
- The remnant itself. A long tail remnant is scrap. A short one can sometimes be returned to stock as offcut – which is worth asking about on a repeat order, and is a real saving on a large-volume programme.
The design lever is part length, and it is a genuine design choice more often than people realise: shortening a turned part by a few millimetres where the application allows is one of the cheapest material savings available, and it costs nothing functionally.
Cycle time: the features that cost more than they look
Every feature on a turned part has a cycle-time cost, and some of them are disproportionate to their apparent complexity.
| Facing | Usually cheap and predictable, provided the cut is constant-area rather than constant-force. |
|---|---|
| Rough turning | Set by stock removal, which means by the difference between the bar and the finished diameter. A part that only needs a small diameter reduction is fast; a large one is not. |
| Small features in deep material | A small diameter at the bottom of a deep bore means a slender tool. Slender tools flex, chatter and wear fast, so a shallow small feature is cheap and a deep one is expensive even if the volume of metal is small. |
| Threading | Pitch and class decide the approach. A multi-start thread, a fine pitch, or a thread close to the end of a part all add work, and threading with a power threader is not the same cost as single-point threading. |
| Grooving or cutting off | Cheap in itself, but it introduces a tool change, and every tool change is time on a bar-fed machine. |
| Milling features | Done on a turn-mill or a mill with an automatic tool changer. A part with five milled features is not five times a simple part; it is closer to the sum of five tool changes plus five cutting cycles. |
| Multi-axis work | Live tooling removes a setup and is usually the cheapest way to add a cross-hole or a flat. It is more expensive than a straight turning pass and much cheaper than a second operation. |
The takeaway for a drawing review is that feature count is a poor proxy for cost and setup count is a good one. A part with many simple features in one turning cycle is cheap. A part with two features that must be machined after it is cut off is not.
Tool life and why stainless steel changes the price
Tooling is a real cost on any production turning, and it is the cost most often forgotten in a comparison between materials. A batch that runs unattended for hours with a dull tool produces parts outside tolerance, and the scrap belongs to the tool’s economics rather than to the machining.
- Carbon steel. The reference case. Machinable at good speeds with standard tooling, predictable tool life, and a broad tolerance for a small batch.
- Aluminium. Fast cutting and short tool life in absolute time but high material removal per second, so the economics are usually good. Watch for the exit-of-cut condition that wels the tool to the workpiece.
- Brass. Cuts fast and cleanly, with good tool life. A genuine cost advantage at volume.
- Stainless Steel. Work-hardening makes interrupted cuts the enemy: the interrupted edge hardens, the tool dulls, the dull tool makes the interruption worse. Continuous cutting cycles and sharp correct-grade tooling are what make stainless steel economical, and any quote that assumes stainless steel runs like mild steel has assumed the wrong cycle.
- Free-machining grades. Where the application allows, a sulphur-added stainless steel or free-cutting brass converts a lot of stainless steel cost into brass cost, because the cycle time falls sharply. It is a functional decision as well as an economic one – check the corrosion duty and any welding requirement before specifying it.
Finishing and masking on a turned part
Natural, plated or coated – the print decides, and the agreed finish is logged, with masking and laser marking available where needed. Three points specific to turning:
- Masking a turned thread or bore. A bore that a shaft enters will be damaged by a plating build-up, so it has to be masked. On a turned part this is often done with a plug, which is an operation per part and belongs in the cost.
- Size before or after plating. Plating grows on a sacrificial layer. On a dimension held to +/-0.01 mm, this is not a rounding matter – so state which side of the plating the dimension applies to, or state that it applies before plating and accept that the finished part is larger.
- Laser marking. Useful for traceability on a turned part, and generally done after plating so the mark sits on the finished surface. Worth specifying if parts from different batches or different heats need to be distinguishable on site.
What a good turning drawing contains
Made to your 2D or 3D drawings in PDF, DWG, STEP or IGS, with unusual walls, threads or tolerances feasibility-checked first. The agreed version governs every later batch, and sample approval is documented – dimensions, finish and material recorded for later comparison, which is what makes a repeat order verifiable.
Seven things that make a turning drawing produce the right part the first time:
- Bar diameter and material grade stated. This sets the roughing load, the tool selection and the material cost, and it is often left to the shop to choose.
- Every diameter qualified as a size and a roundness. A diameter tolerance alone does not control roundness, and a turned diameter that is in size but out of round is a common and confusing reject.
- Lengths from a named datum. Not from the chuck, not from the tailstock, and not from a face that has not been made yet.
- Threads called out with class, pitch, hand and whether they are gauged.
- Surface finish called out as roughness on each functional face. A general note leaves the important face rough and the unimportant face finished.
- Which features are functional and which are cosmetic – so tolerance effort goes where the part needs it.
- Size before or after finish.
Tooling is built and held under your part number so tooling lead time stays under our control and the die remains dedicated to your part; mill certificates and heat numbers accompany the first article; and dimensional reports accompany it. A turning part that arrives with a documented first article against an agreed drawing is a part that repeats, and a turning part without one is a part that gets re-quoted.
Inspection: what a turning report should contain
Because turning features are all related to the machine spindle, a turning part’s report is naturally organised around the datum axis. The useful practice on a batch like this is to state the controlling dimensions explicitly rather than reporting everything measured:
- Critical diameters, with both size and roundness. Size alone does not control a diameter – a diameter can be perfectly within size and out of round, and that part will not fit or will not run true.
- Critical lengths, each called out from the named datum rather than from a face that could change.
- Thread pitch diameters where the print calls for gauged threads, since thread size on its own says nothing about fit.
- Surface roughness on the functional faces only, because roughness on a non-functional face is noise in a report and dilutes the information that matters.
- Runout, where the part is used in a chuck or a collet for a downstream operation. A bar-fed part that is straight but out of round will run out in a collet, and that runout becomes a feature position error on the next operation.
The last item is the one that most often causes a repeat order to fail even though every turned dimension passed. A turned part that gets gripped in a collet inherits its runout, and if the next operation needs a hole square to a diameter, the part will not square up without a secondary machining operation – which is a process decision made at the assembly drawing, not at the part drawing, and one worth raising while the part can still be changed.
Volume, repeat orders and the value of a controlled first article
On a bar-fed programme the economics improve substantially with volume, because the per-part setup cost falls away and the tooling amortises. Three practical consequences for how a programme is specified:
- Put the machining and the finish in the same specification from the start. A programme where the finish is added in year two will have accumulated enough dimensional drift that the two generations of parts may not interchange.
- Keep the finished part – not just the drawing – as the reference. Sample approval here is documented with dimensions, finish and material recorded for later comparison, and that record is what makes a barfed repeat order a repeat rather than a fresh experiment.
- Decide the inspection depth once, and revisit it if the batch size changes. A part in the tens of thousands does not need every part measured and cannot afford it; a part in the tens can afford full inspection and may need it. Both are defensible – but the decision should be deliberate and recorded, because it changes what a nonconformance means on the shop floor.
Finally, the question that most often saves money on a turned part: is the part really round? A prismatic part being machined on a turning centre will cost more than the same part on a milling machine, and it is not unusual for a part to arrive designed for turning simply because that is what the previous supplier used. If the part is not fundamentally round, saying so is worth more than any negotiating over the rate.
CNC Machining Parts is the parent range for parts like this one; the overview page gathers the tooling logic, finishing options and tolerance notes that apply across the family.
Where this part is used

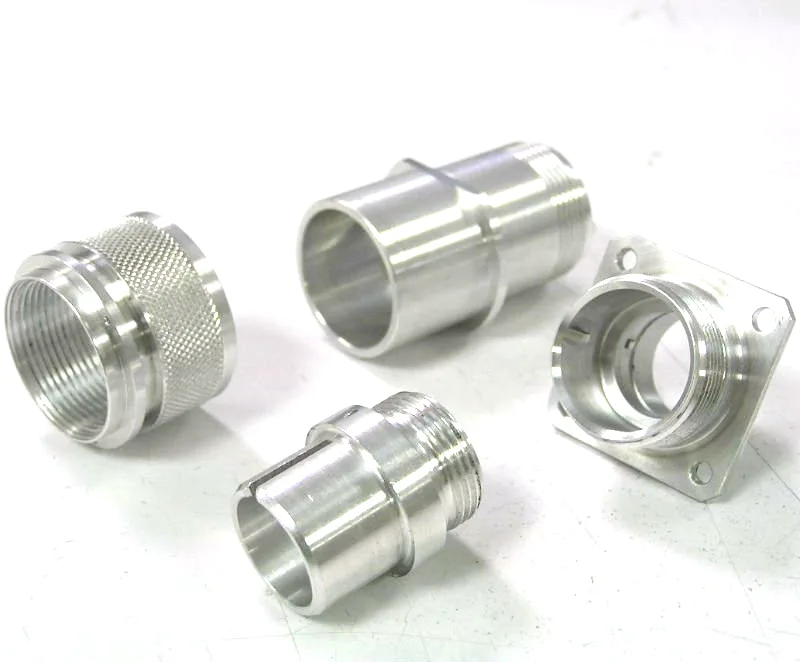

CNC turning parts cover an enormous range of geometry – from a simple spacer to a fitting with threads, a keyway and a seal face – and the reason they all cost what they cost is the production system around them, not the shape. Bar-fed turning runs unattended, so the cost is decided by how much of each bar becomes parts, how many seconds the spindle spends, whether the tool survives the batch, and how often a human has to touch the machine.

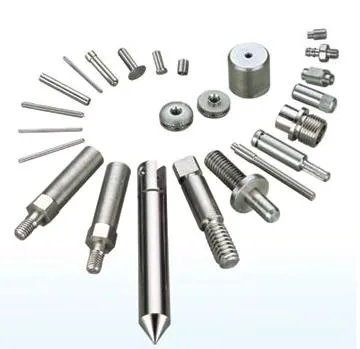

The parts that arrive tend to be components rather than mechanisms: a spacer, a bush, a stem, a housing, a connector body. They are usually machined because the geometry or the tolerance needs it, and they are usually ordered in repeat, which is what makes the economics work. When a part is genuinely a one-off, a different route may serve it better, and we say so at quotation rather than quoting a production method at prototype prices.
What we need to quote it
Send the drawing, the material grade and temper confirmed in writing, and the annual quantity – quantity is what decides the bar strategy and the tool life assumption. Tell us which dimensions are tight and which are nominal, and note any thread standard, because a thread specification changes both the tooling and the inspection. Mark the surfaces that must not be plated or masked, since masking is a real cost in bar-fed work. First-article samples carry a dimensional report.
Specifications
| Item | CNC Turning Parts |
|---|---|
| Brand | AUNOV |
| Designing | Made to your 2D/3D drawings (PDF, DWG, STEP, IGS) – unusual walls, threads or tolerances are feasibility-checked first; the agreed version governs every later batch. |
| Tooling | Tooling is built and held under your part number, so tooling lead time stays under our control, and the die remains dedicated to your part. |
| Samples | Sample approval is documented: dimensions, finish and material recorded for later comparison. |
| Materials | Carbon steel, 304 / 316 stainless steel, aluminium and brass are all held in stock; mill certificates and heat numbers accompany the first article. |
| Surface finish | Natural, plated or coated – the print decides, and the agreed finish is logged; masking and laser marking available where needed. |
| Processing | Bar-fed turning with milled features completed in the same clamping; first articles verify the whole flow before the run is released. |
| Equipment | Bar-fed CNC turning centres plus 3- and 4-axis machining centres, with in-house toolmaking to keep dies and fixtures maintained. |
| Tolerance | +/-0.01 mm on turned and milled features; dimensional reports accompany the first article. |
| Delivery terms | Delivery quoted per Incoterms 2020 – FOB, CIF or DDP – by sea or air, to your address. |
