Material Selection for Deep Drawing: Stainless Steel, Aluminum, Brass & Copper
Why Material Choice Drives the Whole Process
In deep drawing, the metal is not a passive input — it decides the draw ratio, the number of redraws, the anneal steps, the tool coating, and the scrap rate. Pick the wrong alloy and a part that should draw in three hits needs six, or cracks on the line. Pick the right one and the same geometry runs clean and cheap.
This guide compares the families engineers reach for most: stainless steel, aluminum, brass and copper, low-carbon and alloy steel, and the nickel-based exotics. For the narrow sensor-housing case, our SS304 vs SS316 guide goes deeper. For geometry difficulty, see the simple, average, and difficult classification.
Stainless Steel (304, 316, 430, 17-4PH)
Stainless steel is the default for corrosion-sensitive and strength-critical housings. The catch is work hardening: it stiffens as it deforms, so deep draws need intermediate anneals and careful redraw scheduling. Austenitic grades (304, 316) draw well but spring back; ferritic 430 is cheaper and draws readily for less demanding environments; precipitation-hardening 17-4PH is formed soft then heat-treated for strength.
- Pros: corrosion resistance, strength, cleanability, broad spec coverage.
- Cons: high work hardening, more redraws, higher tool wear, springback.
- Best for: sensor housings, medical and food contact, outdoor and marine parts.
Aluminum Alloys
Aluminum is the easy former. It draws to low ratios with few anneals and is light and conductive. The trade is softness — drawn aluminum dents and scratches easily, and some grades age-harden in storage, changing formability after a few weeks. Keep stock rotation tight and avoid alloys that harden before you run them.
- Pros: excellent formability, light weight, good conductivity, low cost.
- Cons: low strength and surface hardness, denting, age-hardening stock.
- Best for: lightweight enclosures, heatsinks, consumer and automotive shells.
Brass and Copper
Brass and copper are superb drawers — they work-harden slowly, hold tight tolerances, and offer conductivity and corrosion resistance. Brass also machines and plates cleanly for decorative or RF parts. Cost and supply volatility are the main downsides, and copper work-hardens faster than brass, so very deep draws may need an anneal.
- Pros: smooth drawing, tight tolerance, conductivity, corrosion resistance.
- Cons: material cost, copper work-hardens, supply swings.
- Best for: electrical contacts, connectors, plumbing, decorative shells.
Low-Carbon and Alloy Steel
Plain low-carbon steel is the workhorse: cheap, draws easily, and welds or coats well. It rusts without protection, so it is usually plated, painted, or used internally. Alloy steels add strength for structural drawn parts but draw less forgivingly than mild steel and may need controlled annealing.
- Pros: lowest cost, easy forming, good for plating and welding.
- Cons: corrodes unprotected, limited corrosion service.
- Best for: structural housings, brackets, internal components.
Nickel Alloys and Exotics
Inconel, Hastelloy, and similar nickel alloys draw for extreme heat and corrosion service — aerospace, energy, and chemical handling. They are the hardest to form: high strength, strong work hardening, and sensitivity to heat, so draw schedules are conservative and tooling is specialized. Reserve them for where nothing else survives.
- Pros: extreme temperature and corrosion resistance.
- Cons: very difficult to draw, expensive, specialized tooling.
- Best for: aerospace, chemical, and high-temperature components.
Formability Comparison at a Glance
| Family | Drawability | Redraws needed | Key limitation |
|---|---|---|---|
| Aluminum | Excellent | Few | Soft, dents easily |
| Brass / Copper | Excellent | Few | Material cost |
| Low-carbon steel | Very good | Few | Corrodes unprotected |
| Stainless steel | Good (work-hardens) | More + anneals | Springback, tool wear |
| Nickel alloys | Poor | Many | Cost, heat sensitivity |
Matching Material to Application
A simple rule: specify the alloy for the one requirement that actually matters — corrosion, strength, conductivity, or weight — and let everything else default to the cheapest option that meets it. Over-specifying stainless steel on a part that only needs mild steel protection wastes formability and money. A deep drawn parts supplier can model the draw schedule for your shortlist and flag where a cheaper alloy draws just as well.
For the cost side of the decision, our advantages of deep drawn manufacturing article explains why the process beats machining and welding across most hollow shapes once the material is chosen.
Matching Material to the Job
Rather than memorising formability tables, start from the single requirement that actually decides the part, then let the rest of the specification follow. The four questions that settle most selections are how corrosive the service is, whether the part must carry load, whether it must conduct heat or current, and what the part is allowed to weigh.

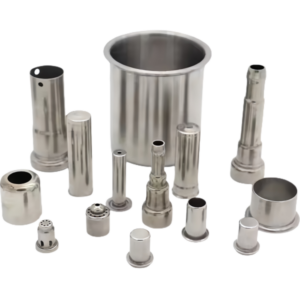

- Corrosive or washdown service. Stainless steel, with 316 only where chlorides are present. Our stainless steel deep drawn cups and tube shells are a standard pick for food, medical and marine work.
- Weight-critical enclosures. Aluminium draws easily and anodises well; the aluminium deep drawn enclosure with rounded corners is typical.
- Conductivity and RF work. Copper and brass. Our copper drawn tubes with oval cut ends show the ductility copper brings to tight formed ends.
- Structural, non-corrosive. Low-carbon steel with a specified coating, which is almost always the cheapest route.
Finishes and Post-Treatments by Material
Material choice also sets what finishing can follow the draw. Electropolishing and passivation suit stainless steel and are common on medical and food-contact parts. Anodising works only on aluminium and can be specified in clear or coloured forms. Brass and copper plate and lacquer cleanly, though lacquer is usually needed to stop tarnishing. Low-carbon steel is the most flexible — zinc, nickel, chrome or powder coat — but every one of those is a second operation, so the coating cost has to be weighed against the saving on the base material.
What to Put on the Drawing
Give the supplier the alloy grade, the temper or condition, the wall thickness with tolerance, and the finish — and mark which of those are mandatory versus preferred. A drawing that says “stainless steel 304 or equivalent, 0.8 mm, passivated” gets an accurate quote; one that says “stainless steel, as required” gets a cautious one. If you are choosing between grades, our SS304 vs SS316 guide covers the decision for sensor housings specifically.
Material Cost Is Not Total Cost
Buyers often compare alloys on price per kilogram, but the drawn part is priced on more than metal. A cheaper alloy that cracks, needs an extra anneal, or has to be plated afterwards can end up more expensive per finished piece than a costlier alloy that draws cleanly and ships as-formed.
- Formability drives the number of operations. Fewer draws means less press time and less handling.
- Finishing can dominate. An alloy that needs no coating beats one that needs plating on every piece.
- Yield is part of the price. A material with a higher scrap rate costs more than the raw price suggests.
- Availability affects lead time. Exotic grades may be correct on paper and still impractical on a twelve-week programme.
The practical approach is to quote the two or three alloys that both meet the service requirement and draw well, then let tooling and piece price decide between them. Where corrosion resistance is the deciding factor, our SS304 vs SS316 comparison narrows the choice quickly.
Documentation and Traceability
Material choice also carries a paperwork obligation. Automotive, medical and food-contact programmes normally require material certificates, and many ask for full traceability back to the melt. Stainless steel and aluminium are routinely supplied with certification; copper and brass are usually straightforward as well, though lead times can stretch for certified exotics.
Say which documents you need when you ask for the quote rather than after the order is placed — certificates are far easier to arrange at the time of purchase than to reconstruct later. Recyclability is worth noting too: the offcut from a drawn blank is clean, segregated and readily recycled, which is one reason the process scores well on material efficiency.
Frequently Asked Questions
Which material is easiest to deep draw?
Aluminum and brass draw most easily, with few redraws and minimal annealing. Low-carbon steel is also very formable and the lowest cost option for non-corrosive service.
Why is stainless steel harder to deep draw?
Stainless steel work-hardens rapidly as it deforms and springs back after the punch releases, so it needs more redraws, intermediate anneals, and wear-resistant tooling than aluminum or mild steel.
Can copper and brass be deep drawn?
Yes, and they are excellent drawers because they work-harden slowly and hold tight tolerances. Copper may need an anneal on very deep draws; brass also plates and finishes cleanly.
How do I choose between stainless steel grades?
304 covers most corrosion needs, 316 adds chloride resistance for marine and chemical service, 430 is a lower-cost ferritic option, and 17-4PH is formed soft then heat-treated for strength. Match the grade to the exact environment.
Should I always specify stainless steel?
No. Specify it only where corrosion or strength demands it. On parts that only need protection, mild steel with plating draws more cheaply and wastes less material than stainless steel.
