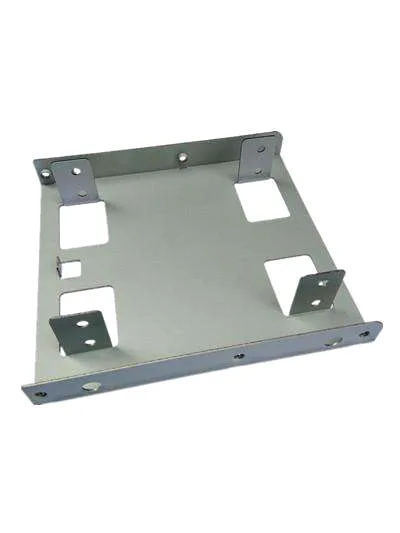

Produced in stainless steel by Aunov Tech, the Precision Stamped and Bent Bracket is formed and machined on the same floor. In service, the stamped bracket locates and carries the mating component under load and vibration. One production floor covers forming, finishing and inspection, and a design change is re-sampled in one place on one production route.
Product overview
The critical features of this metal bracket are, the forming route, the tolerance band and the sealing faces, each measured at first article and gauged on production batches.
Die work and machining for this metal bracket sit on the same floor, which keeps revision loops short and samples fast, with the tooling history retained in house.
How it is manufactured
The process for this metal bracket runs in a fixed sequence: Blanking and forming run in progressive tooling; deburring and finishing are completed before packing.
Every part order keeps its trace back to the approved first article, and a reorder is a repeat rather than a new start. The signed part sample remains the reference and is kept with the job file.
Materials and finishing
Base materials in stock: SPCC / DC01 carbon steel, 304 / 316 stainless, aluminium, brass, copper and bronze and this metal bracket runs in carbon steel or stainless.
The finish is chosen for the duty it will see: zinc and nickel plating, chrome, anodising, powder coating and passivation. The agreed finish for this metal bracket travels with the part number on every reorder.
Every part order keeps its trace back to the approved first article, and a reorder is a repeat rather than a new start. First article, drawing revision and material cert travel with each part batch.
Quality control
An ISO 9001 certified system governs production: incoming material is verified against mill certificates, a full CMM report approves the first article, and run inspections follow an agreed sampling plan. On the stamped bracket itself, hole positions are checked on a fixture at first article, and formed flatness is gauged each run. Functional testing – torque, leak or pressure – can be written into the plan, and the report is packed with the shipment.
Where the part is used
This metal bracket normally works inside industrial machinery and equipment assemblies for OEM and Tier-1 customers.
One drawing for this metal bracket is commonly applied to several programmes, so wall bands and finishes are selected to cover the widest duty, and no re-tooling is needed.
Specifications
| Item | Precision Stamped and Bent Bracket |
|---|---|
| Brand | AUNOV |
| Designing | Files reviewed in PDF, DWG, STEP or IGS; the signed-off revision is the reference for production. |
| Tooling | Tooling is built and held under your part number, so the die charge appears as its own quotation line, and first-article timing is measured from the tooling start date. |
| Samples | Pre-production samples come with a full inspection report, so the approved first article becomes the gauge reference, and the signed sample is kept for future reorders. |
| Materials | Carbon steel (SPCC / DC01), 304 / 316 stainless, aluminium, brass and copper – the grade is matched to the duty of this bracket. |
| Surface finish | Plating, coating or polishing to suit the drawing; masking and laser marking available where needed. |
| Processing | Progressive die stamping, trimmed and formed in one pass; first articles verify the whole flow before the run is released. |
| Equipment | Progressive presses 25-200 T, decoilers and coil feeders, vibratory finishing lines and a full in-house toolroom. |
| Tolerance | +/-0.05 mm on bend positions, +/-0.1 mm on blank outline; finer bands confirmed from capability data before quoting. |
| Delivery terms | FOB, CIF or DDP per Incoterms 2020, payment by T/T, L/C at sight or D/P; price breaks tie to annual volume. |
